Geometry Problem 1497: Scalene Triangle, Transversal, Same Ratio, Proportionality, Isosceles, Double Angle

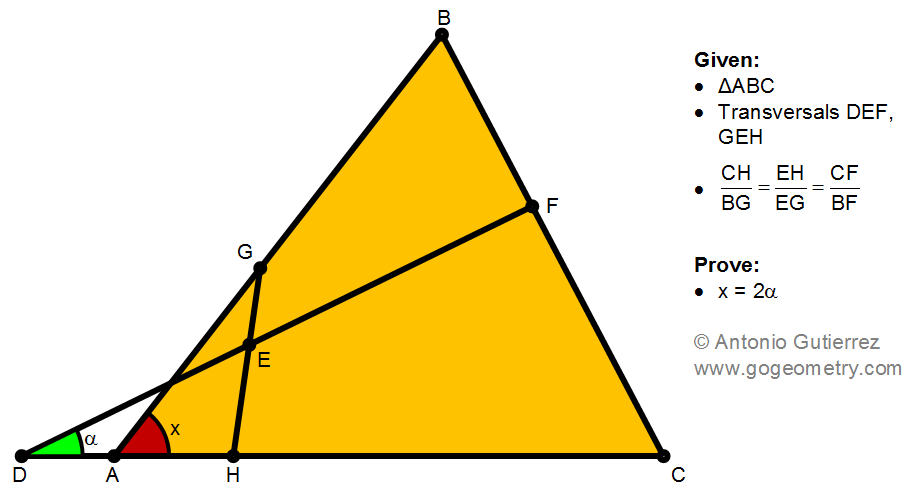

The figure below shows a triangle ABC with the transversals DEF and GEH so that \({CH \over BG}={EH \over EG}={CF \over BF}\). Prove that the measure of angle A is double the measure of angle D.

Geometry Problem 1497: Triangle, Transversal, Same Ratio, Proportionality, Isosceles, Double Angle

View solution

Typography and Sketch of Problem 1497: Statue of Liberty in the background


Geometry Problem 1497: Triangle, Transversal, Same Ratio, Proportionality, Isosceles, Double Angle, Statue of Liberty in the background

Geometric Art using Mobile Apps

Geometric art is a form of art based on the use and application of geometric figures. A geometric figure is any set or combination of points, lines, surfaces and solids.

A mobile app or mobile application software is a computer program designed to run on smartphones and tablet computers.

Recent Additions

Geometry Problems
Open Problems
Visual Index
Ten problems: 1411-1420
All Problems
Triangles
Isosceles Triangle
Triangle with Double Angle
Transversal Lines
Similarity, Ratios, Proportions
View or Post a solution


Geometry Problem 1497 Solution(s)
