Geometry Problem 1135: Intersecting Circles, Secant, Parallel Line, 90 Degrees, Similar Triangles. Level: High School, SAT Prep, Honors Geometry, College, Math Education

< PREVIOUS PROBLEM  |  NEXT PROBLEM >

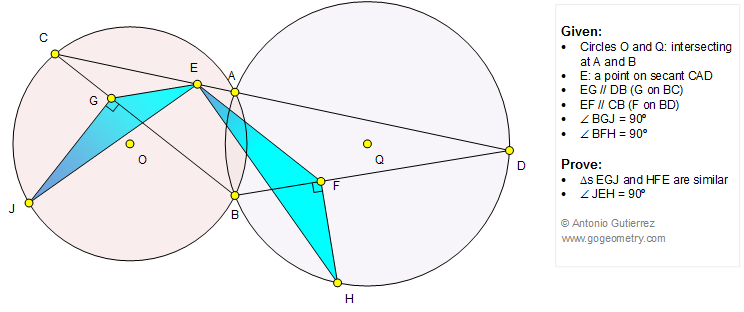

Circles O and Q intersect at A and B (figure below) and E is a point on a secant CAD. EG and EF are parallel to DB and CB, respectively. Angles BGJ and BFH are equal to 90 degrees. Prove that (1) Triangles EGJ and HFE are similar; (2) angle JEH = 90 degrees.




Infographic Geometry problem 1135 Intersecting Circles, Secant, Parallel Line, 90 Degrees, Similar Triangles
