Go Geometry Problems: Intersecting circles

Online Geometry Problem 705: Intersecting Circles, Diameter, Angles, Measurement. Level: High School, Honors Geometry, College, Mathematics Education

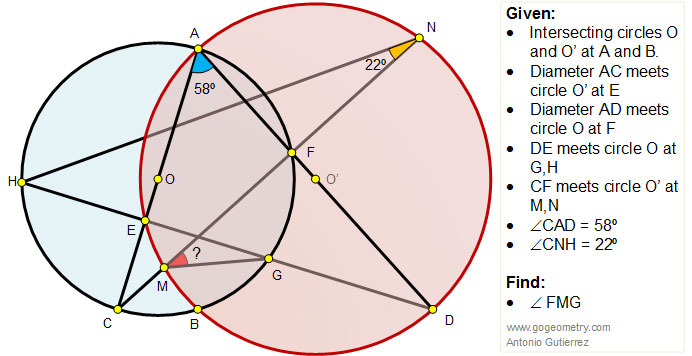

The figure shows the intersecting circles O and O' at A and B. The diameter AC of circle O meets circle O' at E, the diameter AD of circle O' meets circle O at F. Line DE meets circle O at G,H, line CF meets circle O' at M,N. If the measure of angle CAD = 58 degrees and the measure of angle CNH = 22 degrees, find the measure of angle FMG.


Intersecting circles, Diameter, Perpendicular, Angle, Measure
