Geometry Problem 1203: Right Triangle, Square, Angle Bisector, Perpendicular, Three Congruent Quadrilaterals. Tiled background image: Twelve Angled Stone, Cusco. Online High School, College.

< PREVIOUS PROBLEM  |  NEXT PROBLEM >

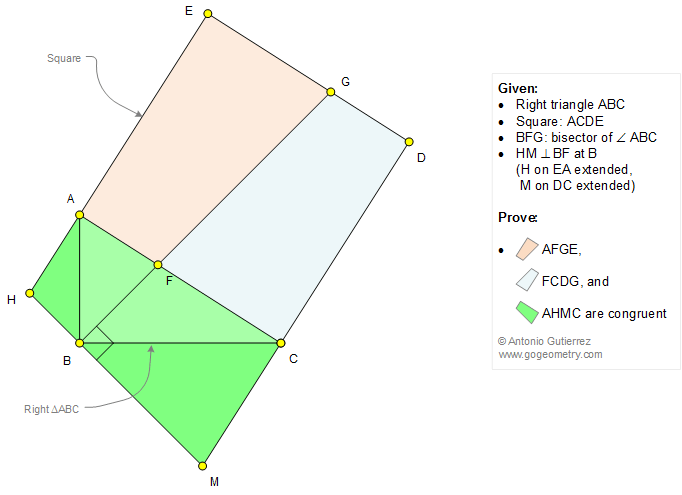

The figure shows a right triangle ABC with the square ACDE. The bisector of angle ABC cuts AC and DE at F and G, respectively. HM is perpendicular to BF at B (H on EA extended, M on DC extended). Prove that the quadrilaterals AFGE, FCDG, and AHMC are congruent (same shape and size).


Geometry Problem 1203: Right Triangle, Square, Angle Bisector, Perpendicular,Three Congruent Quadrilaterals.


See also:
Geometric art of problem 1203 made with iPad

Isolines of problem 1203
