Problem 718: Intersecting Circles, Midpoint, Angle, Measurement. High School, College

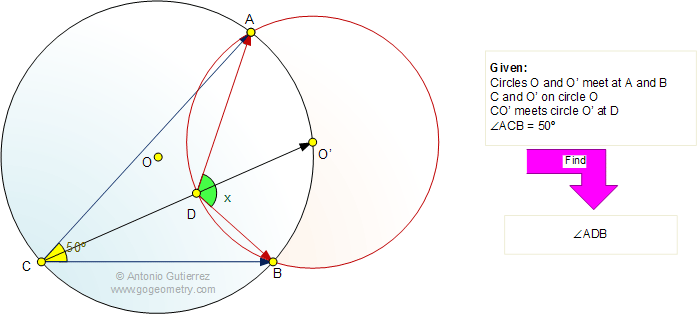

In the figure below, the circles O and O' intersect at A and B. C and O' are on circle O. CO' meets the circle O' at D. If the measure of angle ACB is 50 degrees, find the measure of angle ADB.


Intersecting circles, Angles, Measurement, Midpoint
