Go Geometry Problem Problem 464: Square, Center, Arc, Angle, 120 Degrees

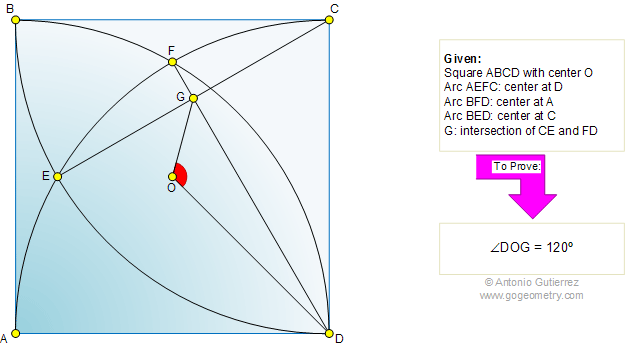

The figure shows a square ABCD with center O. It contains arcs AEFC, BFD, and BED drawn with centers at D, A and C, respectively. Lines CE and FD meet at G. Prove that the measure of angle DOG is 120 degrees.


Square, Center, Arc, 120 degrees


Dynamic Geometry of Problem 464

Interactive construction created with GeoGebra by Tim Brzezinski
