Problem 436: Tangent Circles, Diameter, Chord, Perpendicular, Congruence

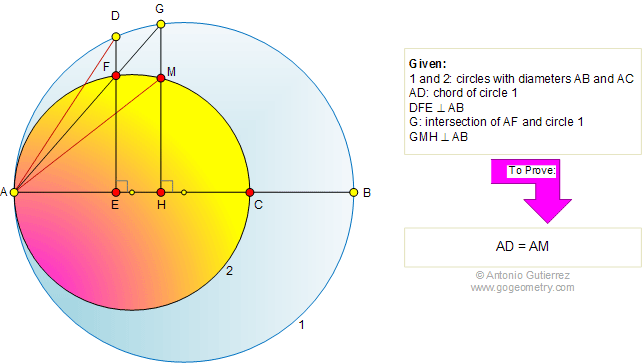

The figure shows the circle 1 with diameter AB and circle 2 with diameter AC tangent at A. Line DFE is perpendicular to AB, the extension of AF intersect circle 1 at G, and line GMH is perpendicular to AB. Prove that chords AD and AM are congruent.



Tangent Circles, Chords, Perpendicular
